Lot-1: Complete Workover Rig Package — Rig 451
Total Assets Within Lot: 15
Turnkey workover rig, sold complete as one lot. Nordic Super Single Rig 451, a self-elevating land workover rig built by Well Equipments International S.r.l. (Italy) in 2014. Rated to 3,000m (10,000ft) max drilling depth with 5" and 3-1/2" drill pipe and 25klb BHA. Mast: 69ft, 465,000 lb nominal hook capacity. Crown block: 220mt capacity, 4 sheaves. Hydraulic hoisting system: 2 power packs, 775 hp each, 1,550 hp total continuous. Top drive: 200 rpm max continuous speed, 25,000 ft-lb continuous torque.

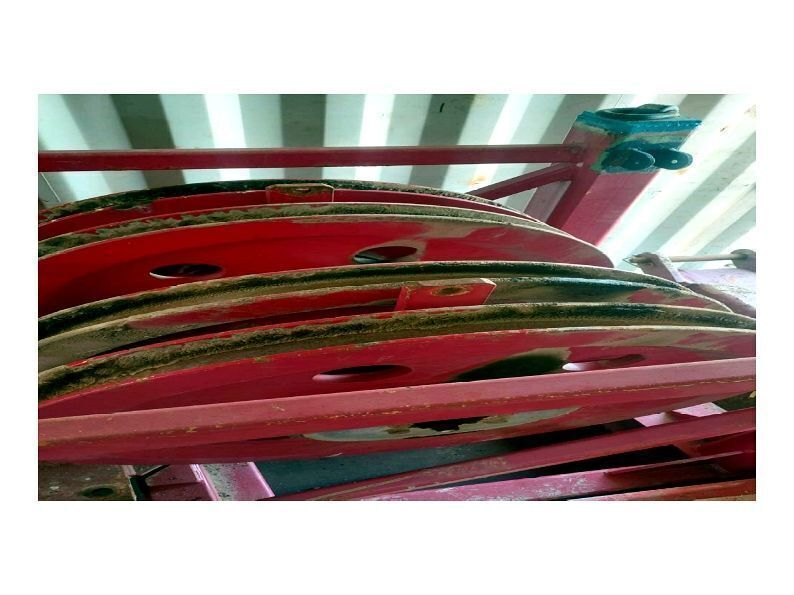

Crown block with transport skid — Purchased 2014 | USA. 220mt capacity, 4 sheaves, 32mm cable diameter.

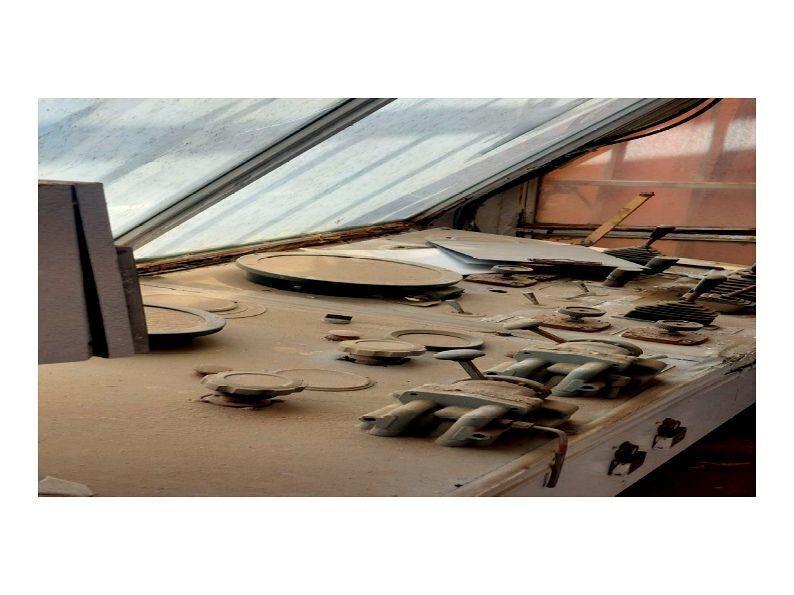

Control cabin (Dog House) — Purchased 2015 | USA

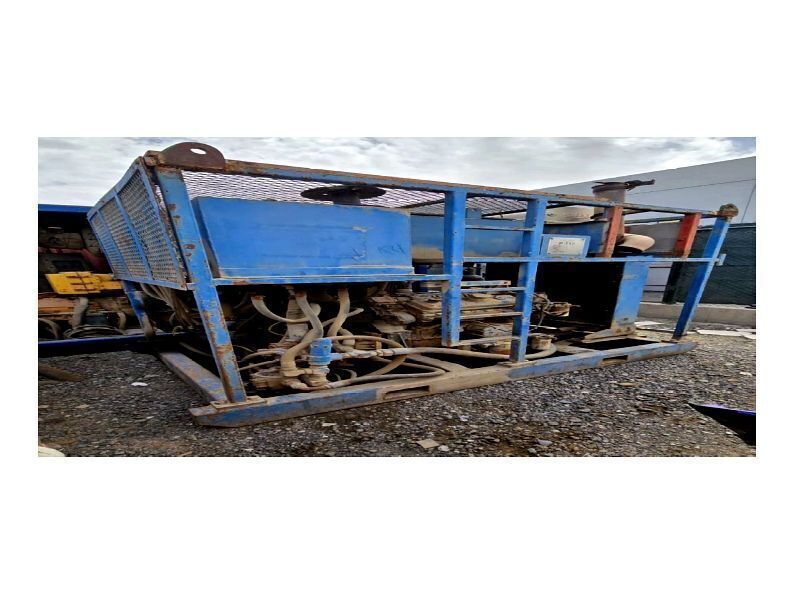

Power Pack — USA

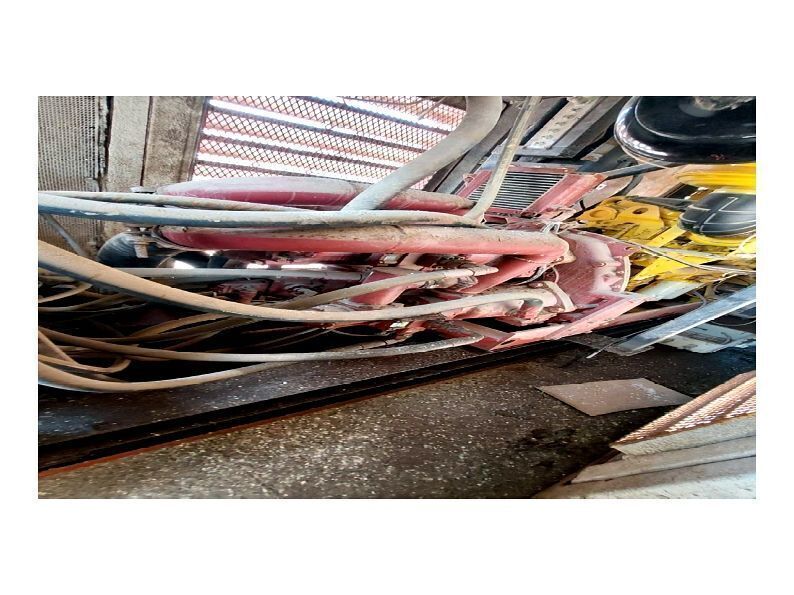

Power Pack — Model HPU-451A | Purchased 2013 | USA. Caterpillar C18 diesel engine, S/N OWJH01722, Techno Drive gearbox Model AM364, S/N 0612004. Denison and Marzocchi hydraulic pumps.
Power Pack — Model HPU-451B | Purchased 2013 | USA. Caterpillar C18 diesel engine, S/N OWJH01721, Techno Drive gearbox Model AM365, S/N 0612005. Denison and Marzocchi hydraulic pumps.
Main Hydraulic holding tank (20ft x 8ft x 8ft) — Purchased 2015 | USA

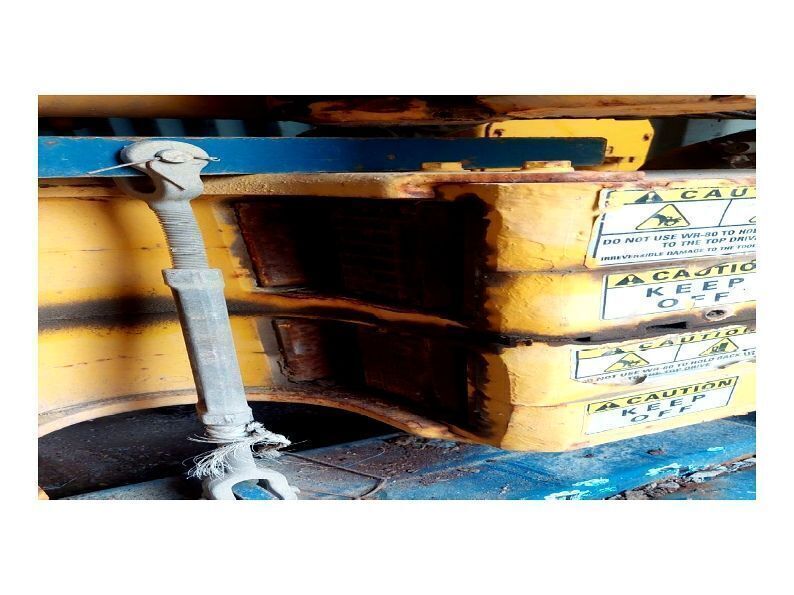

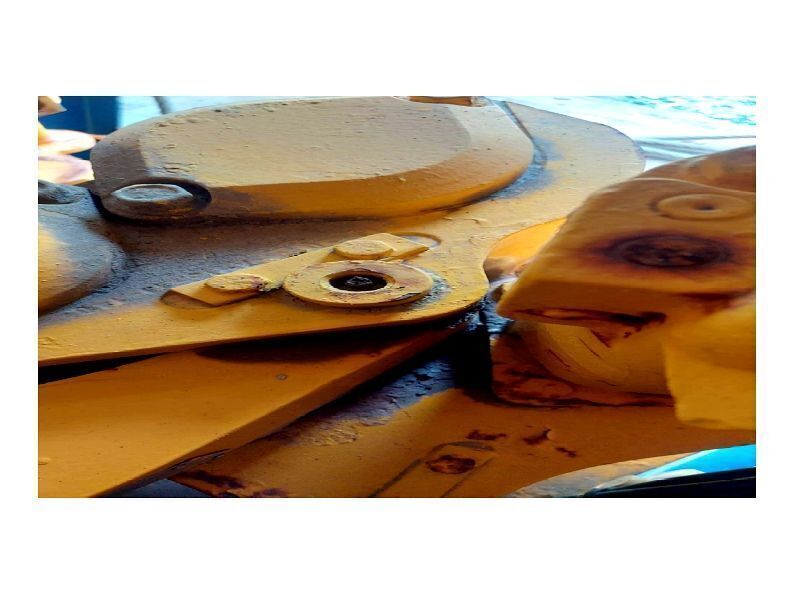

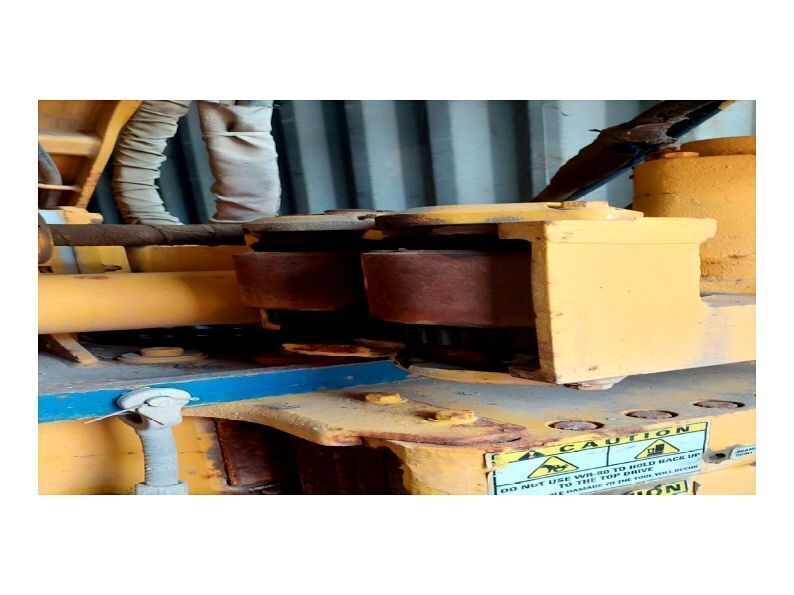

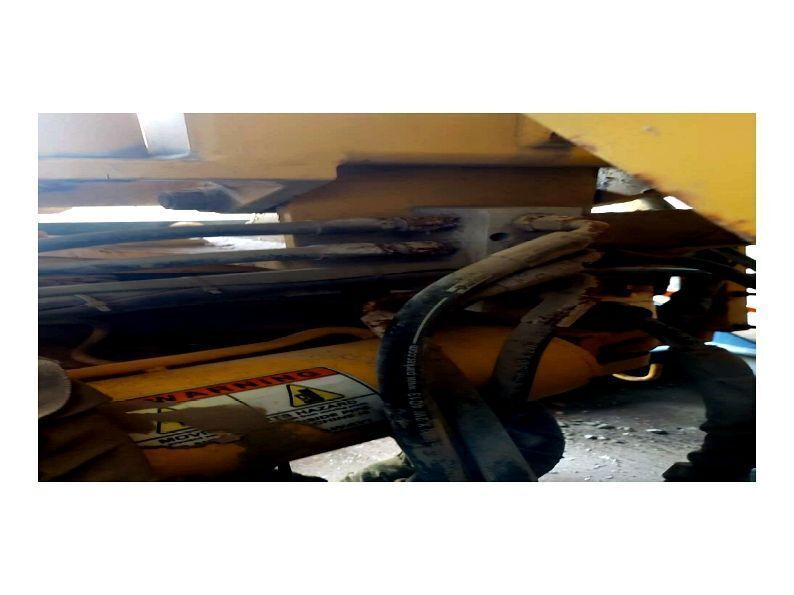

Iron Roughneck - WR-80, Wrangler Roughneck — Model WR-80 | Purchased 2016 | USA. Make-up torque 60,000 ft-lbs, break-out torque 80,000 ft-lbs, pipe range 2-7/8" to 8", weight 5,800 lbs (tool only), hydraulic 2,500 PSI at 26 GPM. Full OEM manual available.

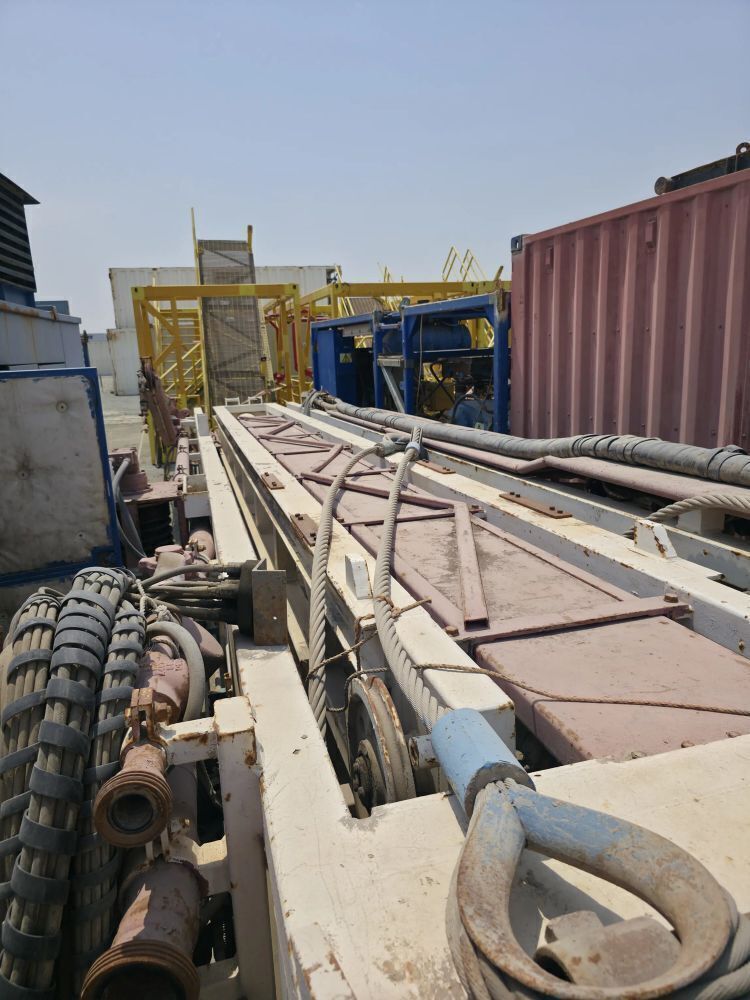

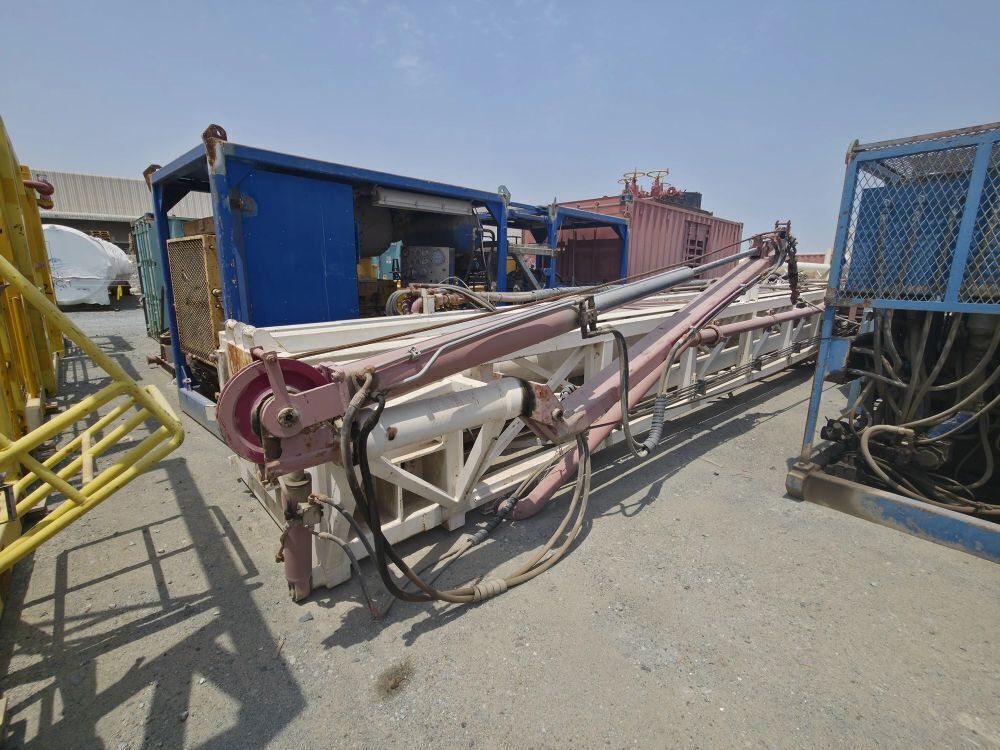

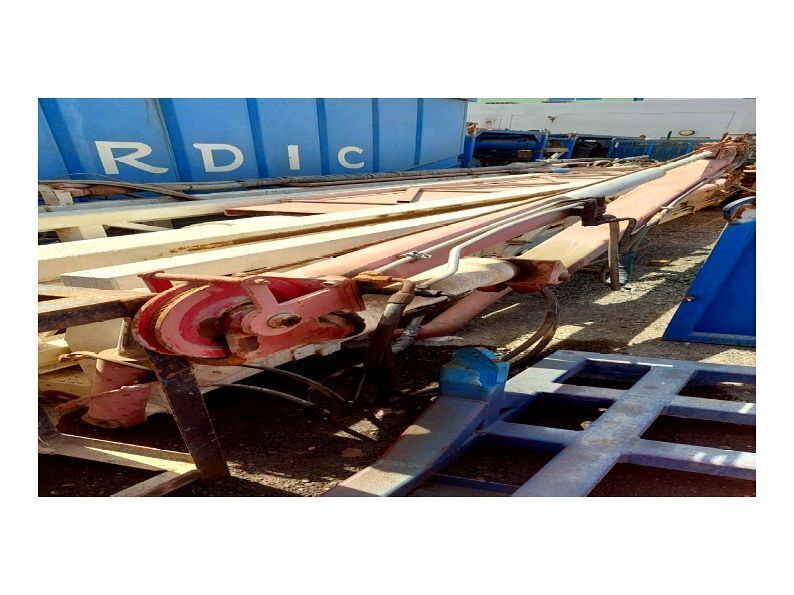

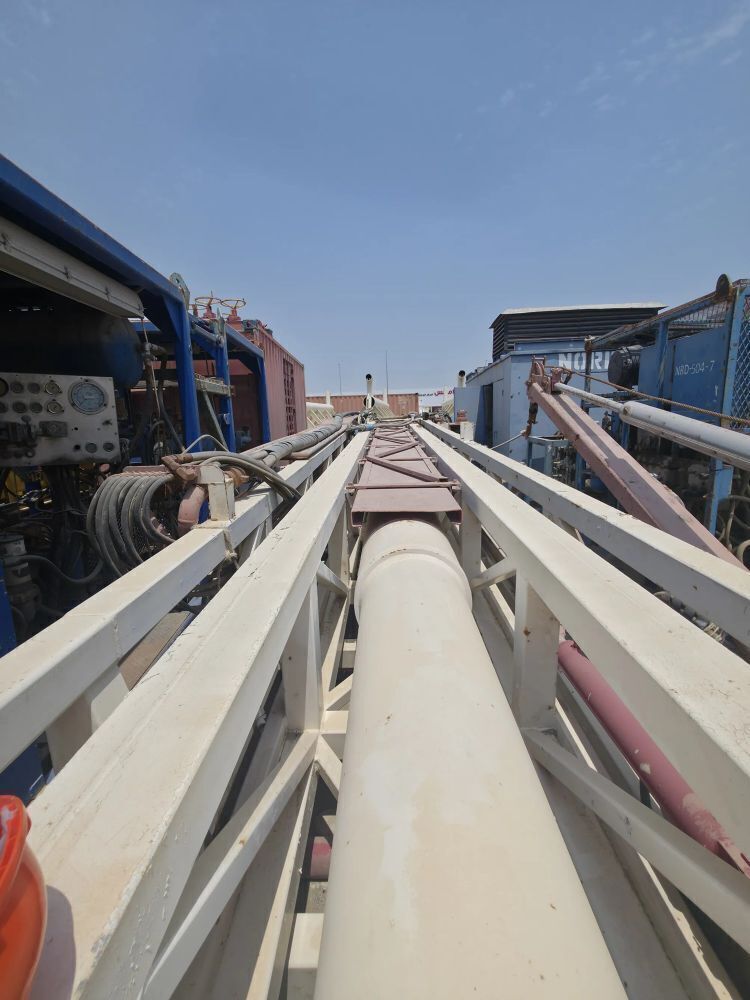

Mast with main lifting cylinder & 4 bull wires and transport skid — Model MAST-451 | S/N 10098S | Purchased 2015 | USA. 69ft height, 465,000 lb nominal hook capacity at 63ft, semi-automated pipe handling system.
Torque Wrench, Control Unit — Model NDR-0174 | Purchased 2016 | USA

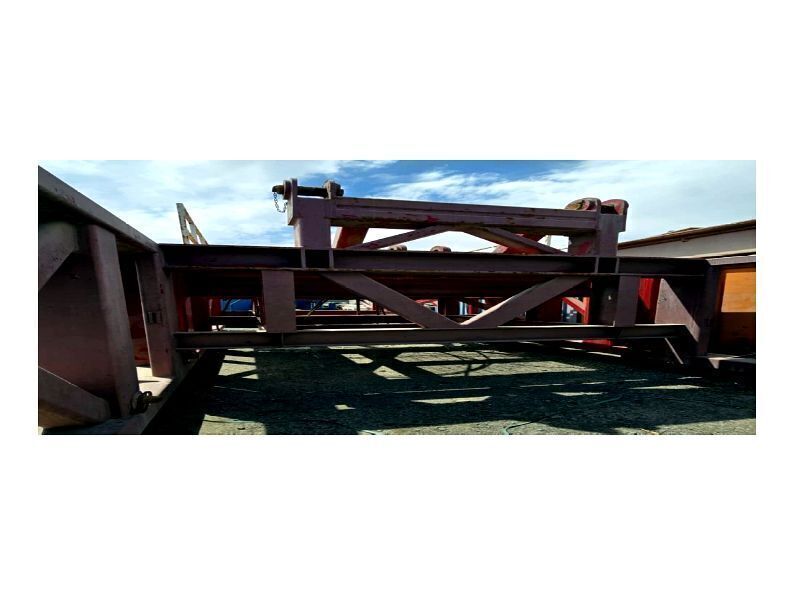

Pony skid with braces — Purchased 2015 | USA
Pony skid with braces — Purchased 2015 | USA

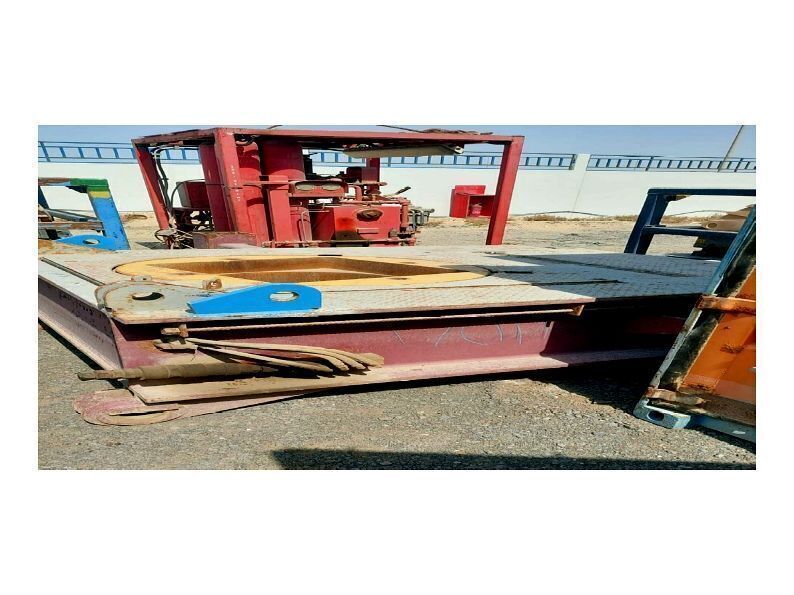

Rotary table — Model R.T.27.1/2 INCH | S/N 544.07 | Purchased 2015 | USA. Master bushing max opening 37-1/2", Varco split/rotating bushing.

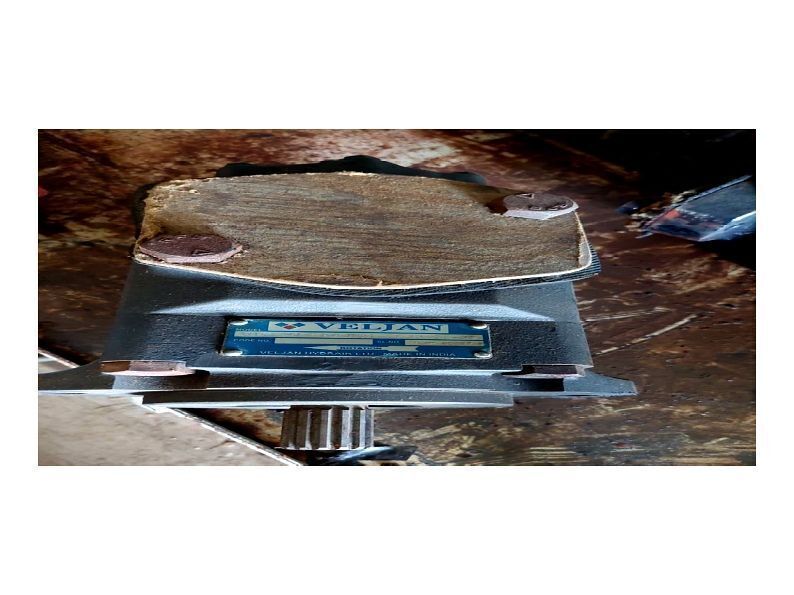

Denison Hydraulic Pump Stage — Purchased 2015 | USA
Main structure with hydraulic raising cylinders, staircases, floor panels etc — Purchased 2015 | USA. Self-elevating substructure, 26ft width x 79ft length, 16.4ft clearance for BOP stack.
Top drive with transport skid — S/N 542.07 | Purchased 2015 | USA. WEI top drive, 200 rpm max continuous speed, 25,000 ft-lb continuous and intermittent torque, hydraulic system air-cooled.
Full O&M documentation available for rig structure, top drive, rotary table, crown block, mast assembly and trailer. Specifications above per OEM rig design manual; buyers should confirm exact configuration against on-site nameplates at inspection.
Oil & Gas, UAE
Close Date
Asset Site Location
Jebel Ali, UAE
Condition
Used
